Pre-Heater / Slanting Trimming / End Cutting - Corner Rounding /
Cleaning Fluid / Radius Scraping / Buffing / Dust Suck
Edge Banding Work Video
Episode Videos

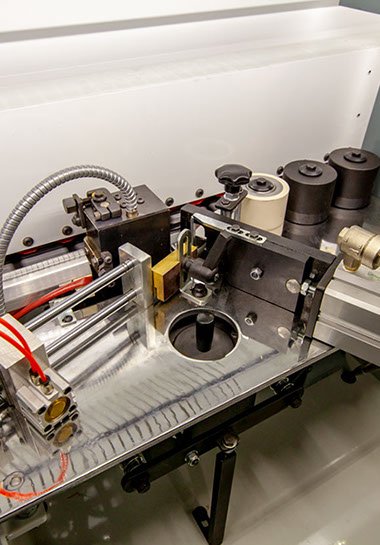

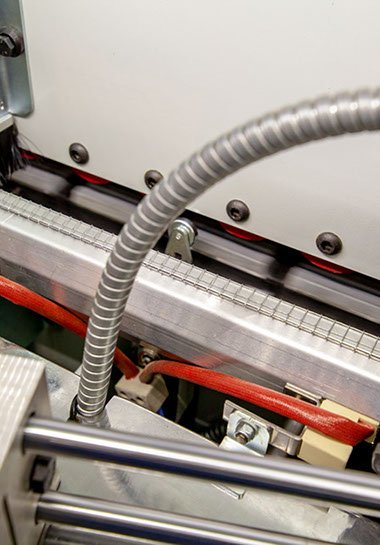

Pre-Heater

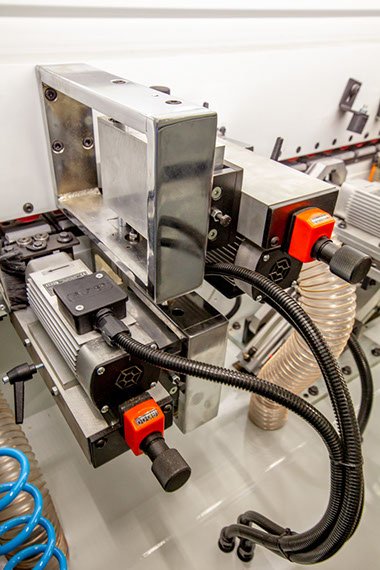

Slanting Trimming

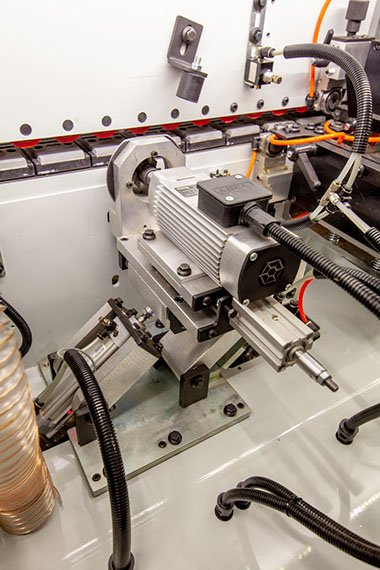

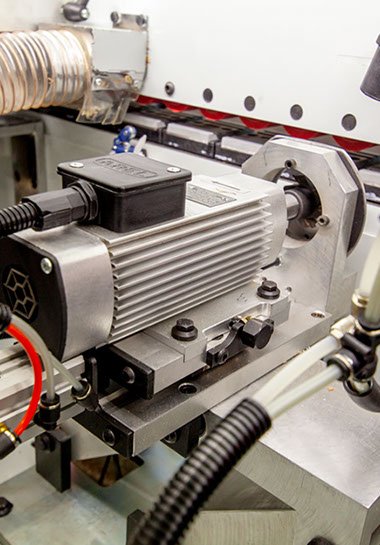

End Cutting

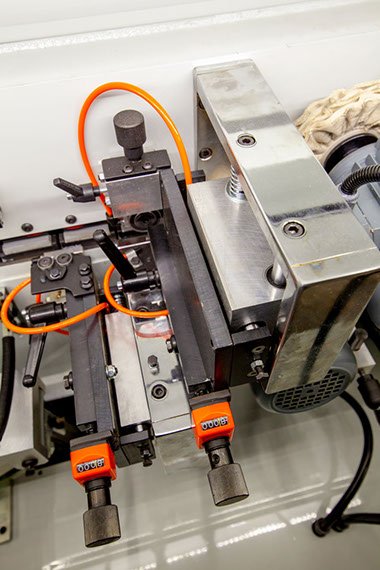

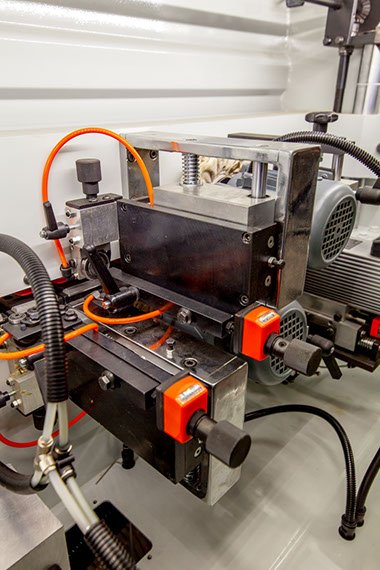

Radius Scraping

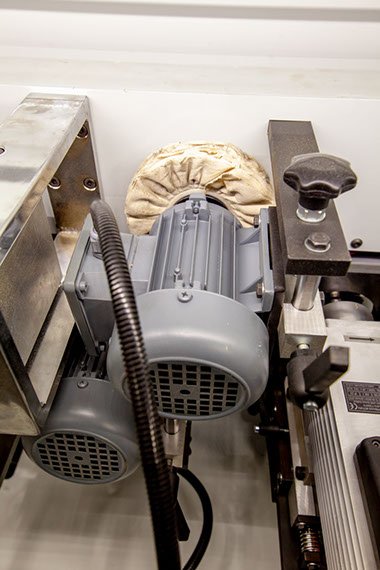

Buffing
Photo gallery
Technicial Specifications
Voltage-/Frekans
Band Thickness
Work Piece Thickness
Work Piece min. Width
Working Speed
Power
Air Pressure
Glue Box Capacity
Glue Heating Time
Milling Cutter Motor
Trim Motor
Width
Length
Height
Weight
380/400 V - 50/60 Hz
0,4 - 2 mm.
8 - 50 mm.
70 mm.
12 m/dak.
8 kW
6 - 8 bar
3 lt.
20 dak.
2 x 0,55 kW 18.000 d/dak.
0,25 kW 18.000 d/dak.
700 mm
3500 mm
1500 mm
900 kg.
